In-situ visualization / monitoring

Thanks to the function gather!, ImplicitGlobalGrid enables straightforward in-situ visualization or monitoring of Multi-GPU/CPU applications using e.g. the Julia Plots package as shown in the following (the GR backend is used as it is particularly fast according to the Julia Plots documentation). It is enough to add a couple of lines to the previous example (omitted unmodified lines are represented with #(...)):

using CUDA                       # Import CUDA before ImplicitGlobalGrid to activate its CUDA device support
using ImplicitGlobalGrid, Plots
#(...)

@views function diffusion3D()
    # Physics
    #(...)

    # Numerics
    #(...)
    me, dims   = init_global_grid(nx, ny, nz);              # Initialize the implicit global grid
    #(...)

    # Array initializations
    #(...)

    # Initial conditions (heat capacity and temperature with two Gaussian anomalies each)
    #(...)

    # Preparation of visualisation
    gr()
    ENV["GKSwstype"]="nul"
    anim = Animation();
    nx_v = (nx-2)*dims[1];
    ny_v = (ny-2)*dims[2];
    nz_v = (nz-2)*dims[3];
    T_v  = zeros(nx_v, ny_v, nz_v);
    T_nohalo = zeros(nx-2, ny-2, nz-2);

    # Time loop
    #(...)
    for it = 1:nt
        if mod(it, 1000) == 1                                                                 # Visualize only every 1000th time step
            T_nohalo .= T[2:end-1,2:end-1,2:end-1];                                           # Copy data to CPU removing the halo.
            gather!(T_nohalo, T_v)                                                            # Gather data on process 0 (could be interpolated/sampled first)
            if (me==0) heatmap(transpose(T_v[:,ny_v÷2,:]), aspect_ratio=1); frame(anim); end  # Visualize it on process 0.
        end
        #(...)
    end

    # Postprocessing
    if (me==0) gif(anim, "diffusion3D.gif", fps = 15) end                                     # Create a gif movie on process 0.
    if (me==0) mp4(anim, "diffusion3D.mp4", fps = 15) end                                     # Create a mp4 movie on process 0.
    finalize_global_grid();                                                                   # Finalize the implicit global grid
end

diffusion3D()

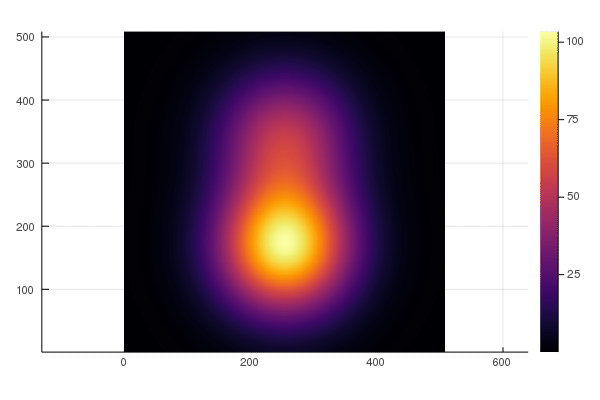

Here is the resulting movie when running the application on 8 GPUs, solving 3-D heat diffusion with heterogeneous heat capacity (two Gaussian anomalies) on a global computational grid of size 510x510x510 grid points. It shows the x-z-dimension plane in the middle of the dimension y:

The simulation producing this movie - including the in-situ visualization - took 29 minutes on 8 NVIDIA® Tesla® P100 GPUs on Piz Daint (an optimized solution using CUDA.jl's native kernel programming capabilities can be more than 10 times faster). The complete example can be found here. A corresponding basic cpu-only example is available here (no usage of multi-threading) and a movie of a simulation with 254x254x254 grid points which it produced within 34 minutes using 8 Intel® Xeon® E5-2690 v3 is found here (with 8 processes, no multi-threading).
