FirecREST Operators for Airflow

Goal

Write custom Apache Airflow operators that use FirecREST to execute compute-intensive DAG tasks on an HPC cluster.

The DAG combines tasks that run locally on a laptop with tasks that must run on a supercomputer. Your operators extend Airflow's BaseOperator and use PyFirecREST in their execute method:

FirecRESTCustomOperator definition

class FirecRESTCustomOperator(BaseOperator):
    def __init__(self, system, script, working_dir, **kwargs):
        super().__init__(**kwargs)
        self.system = system
        self.script = script
        self.working_dir = working_dir

    def execute(self, context):
        # PyFirecREST operations
        ...

Installation

Create a virtual environment and install the required packages:

Create virtual environment for AirFlow

$ git clone https://github.com/eth-cscs/firecrest-training.git
$ cd firecrest-training
$ python3 -m venv .airflow-demo-env
$ source .airflow-demo-env/bin/activate
(.airflow-demo-env) $ pip install -r use-case-airflow-operator/airflow-requirements.txt

Set your credentials as environment variables (the base operator reads these):

Set your environment

(.airflow-demo-env) $ export FIRECREST_CLIENT_ID=<client-id>
(.airflow-demo-env) $ export FIRECREST_CLIENT_SECRET=<client-secret>
(.airflow-demo-env) $ export AUTH_TOKEN_URL=https://<token-url>
(.airflow-demo-env) $ export FIRECREST_URL=https://<firecrest-url>

Tip

You can re-source the .env file created on Local Environment Setup

Launch Airflow

Initialize the database and start Airflow in standalone mode:

Launch Airflow in your laptop

(.airflow-demo-env) $ export AIRFLOW_HOME=$HOME/airflow-demo
(.airflow-demo-env) $ airflow db migrate
(.airflow-demo-env) $ airflow standalone

The dashboard is available at http://127.0.0.1:8080. Credentials are printed at startup and saved to $AIRFLOW_HOME/standalone_admin_password.txt.

Tip

Set load_examples = False in $AIRFLOW_HOME/airflow.cfg to start with a clean dashboard. To change the port, set web_server_port under the [webserver] section in airflow.cfg.

Deploy the DAG

By copying the DAG file to the $AIRFLOW_HOME/dags directory, it will register the DAG and install the custom operators in the Airflow server.

Deploy the FirecREST DAG

(.airflow-demo-env) $ mkdir -p $AIRFLOW_HOME/dags
(.airflow-demo-env) $ cp use-case-airflow-operator/airflow-dag.py $AIRFLOW_HOME/dags/

# Install the custom operators into the Python path
(.airflow-demo-env) $ pip install -e use-case-airflow-operator/

Open $AIRFLOW_HOME/dags/airflow-dag.py and set:

• workdir to the absolute path of the use-case-airflow-operators directory
• <username> to your course username

For MacOS users

If the DAG appears loaded but with errors, export the following variable:

(.airflow-demo-env) $ export OBJC_DISABLE_INITIALIZE_FORK_SAFETY=YES # and then execute again
(.airflow-demo-env) $ airflow standalone

Exercise

The provided DAG (firecrest_example) models a crystal structure simulation workflow with these tasks:

1. Detect that a new structure has been produced (wait_for_file)
2. Upload the structure and its pseudopotential to Daint (upload_in and upload_pp)
3. Submit a job to compute its properties (submit_task)
4. Download the output (download_out_task and download_xml)
5. Log relevant values to a table (log_results)
6. Delete the structure file (remove_struct)

The file firecrest_airflow_operators.py contains the operator implementations to complete.

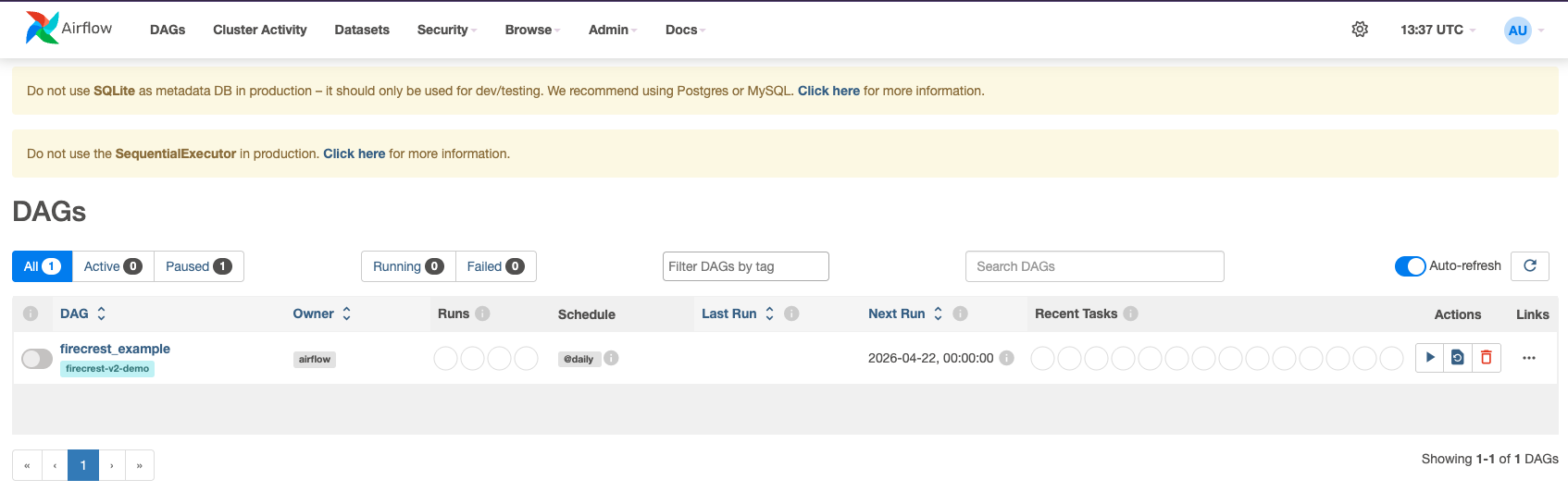

Trigger the DAG from the Airflow dashboard by clicking the Play button next to firecrest_example as shown in the image below

Workflow progress

• The first stage wait-for-file is waiting for the file si.scf.in to be present in the structs folder.
• Copy the file to the folder and wait for the workflow to continue

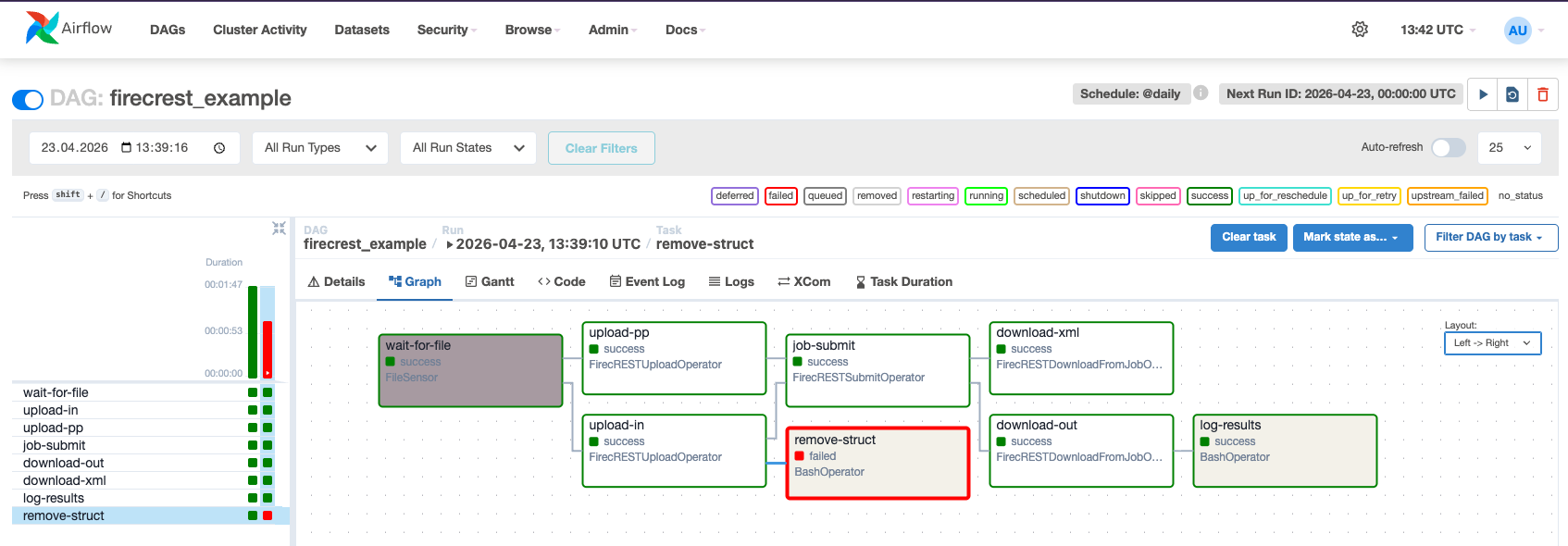

• See the process on the Graph view of Airflow
